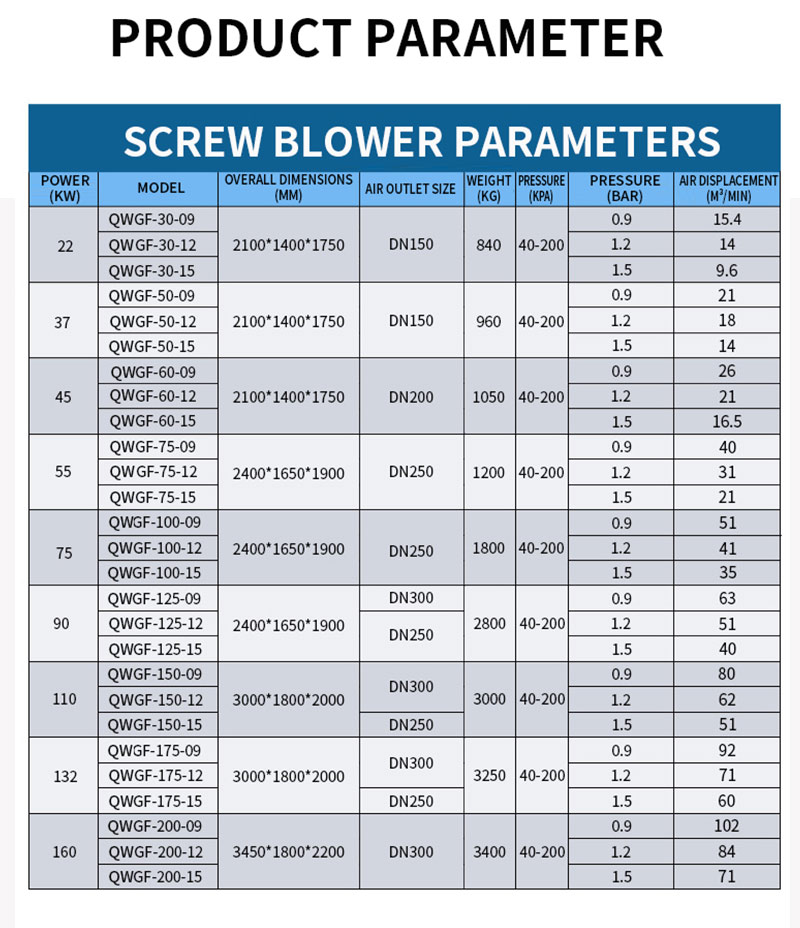

Oil-free Screw Blower series, 11-160KW, provide 0.6-1.5bar low-pressure compressed air;
As a volumetric blower, oil-free screw blower can produce low-pressure air for drying, dust removal, fermentation, evaporative distillation, pneumatic conveying, etc. It is widely used in industries requiring high efficiency, energy saving and low noise, such as sewage aeration, air-water reverse blowing, oxidative desulfurization, vulcanization and homogenization technology, powder pneumatic conveying, printing, etc.
Item No :
002Order(MOQ) :
aPayment :
L/C, T/T, D/P, cashProduct Origin :
China, in suzhouSilent 30 bar ~40 bar High Pressure Oil-free Rotary Screw Type Air For Blower Machine
Product Features
1.The unique labyrinth seal and spiral seal are used to ensure that exhaust oil-free air reaches zero level.
2. Special lubrication and oil drainage channels ensure that bearings and gears are fully cooled and lubricated, and improve compression efficiency at same time.
3.Precision transmission gear and synchronous gear meeting international standard level 5 are adopted to ensure stable operation and longer service life.

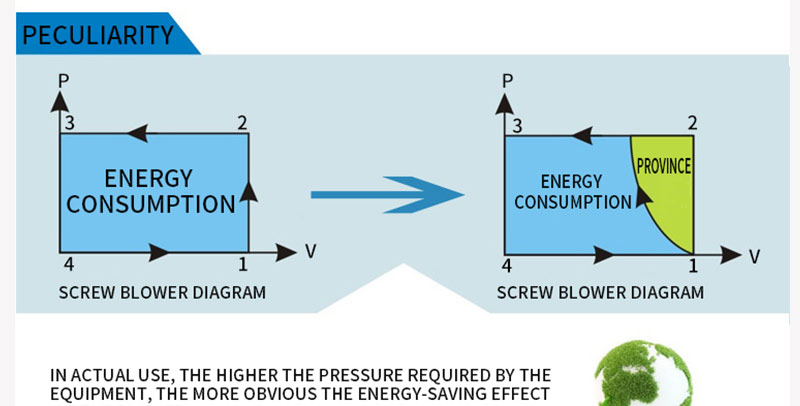

4.The working principle of internal compression makes the exhaust air pressure close to the pressure of pipeline network, and the exhaust is smooth, which significantly reduces the machine vibration and noise. Comparing with Roots blower, the noise can be reduced by about 30 dB (A).
Permanent Magnet Frequency Conversion Screw Compressor Quanwei Frequency Conversion Screw Compressor saves 10%-15% energy more than variable speed screw compressor, while it saves 30%-40% more than standard screw compressor. High Efficiency PM Motor. With the highperformance permanent magnet material, PM motor won't lose magnetism even under 120℃ and can run for more tha n 15 years. No motor bearing: permanent magnet rotor is installed directly on the stretch out shaft of male rotor. This structure doesn't have the bearing and eliminates the motor bearing fault. Comparing to normal variable speed motor, the permanent magn et synchroous motor performs with even better energy efficiency. Especially in the low-speed condition, it can still maintain a high motor efficiency.
read More
Oil-free Screw Blower series, 11-160KW, provide 0.6-1.5bar low-pressure compressed air; As a volumetric blower, oil-free screw blower can produce low-pressure air for drying, dust removal, fermentation, evaporative distillation, pneumatic conveying, etc. It is widely used in industries requiring high efficiency, energy saving and low noise, such as sewage aeration, air-water reverse blowing, oxidative desulfurization, vulcanization and homogenization technology, powder pneumatic conveying, printing, etc.
read More

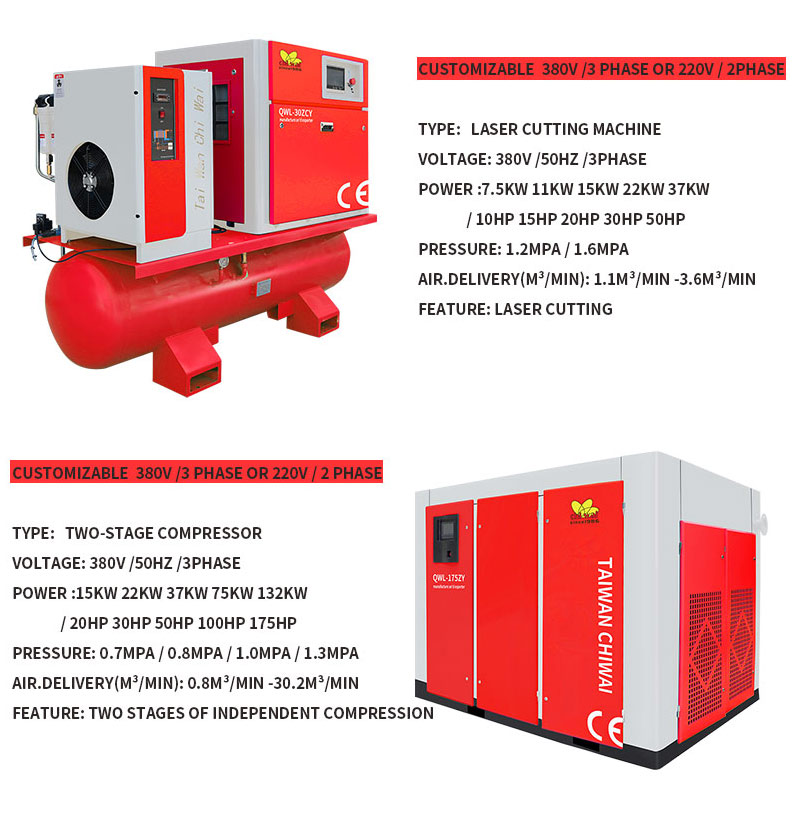

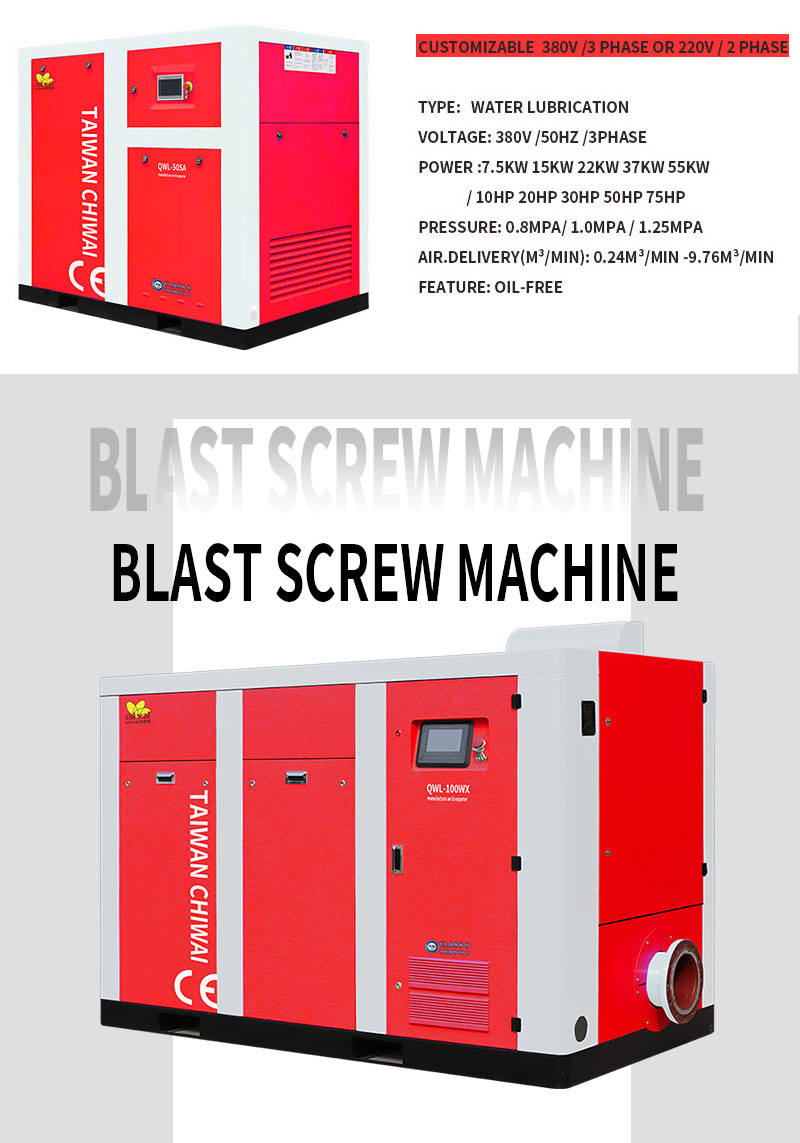

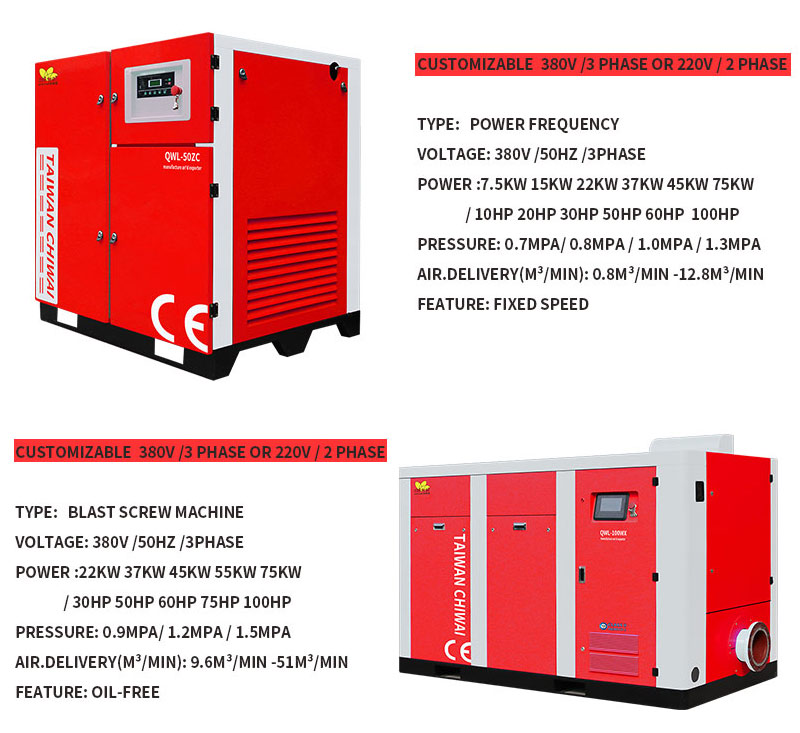

CUSTOMIZABLE 380V /3 PHASE OR 220V 2 PHASE TYPE: WATER LUBRICATION VOLTAGE: 380V/50HZ /3PHASE POWER :7.5KW15KW22KW37KW55KW/10HP 20HP 30HP 50HP 75HP PRESSURE:0.8MPA/1.0MPA/1.25MPA AIR.DELIVERY(M³/MIN):0.24M³/MIN9.76M³/MIN FEATURE:OIL-FREE
read More
CUSTOMIZABLE 380V /3 PHASE OR 220V 2 PHASE TYPE: WATER LUBRICATION VOLTAGE: 380V/50HZ /3PHASE POWER :7.5KW15KW22KW37KW55KW/10HP 20HP 30HP 50HP 75HP PRESSURE:0.8MPA/1.0MPA/1.25MPA AIR.DELIVERY(M³/MIN):0.24M³/MIN9.76M³/MIN FEATURE:OIL-FREE
